This file declare the Managed task Interface. More...

#include "services/eloom_sysbase.h"
#include "services/syslowpower.h"
#include "tx_api.h"

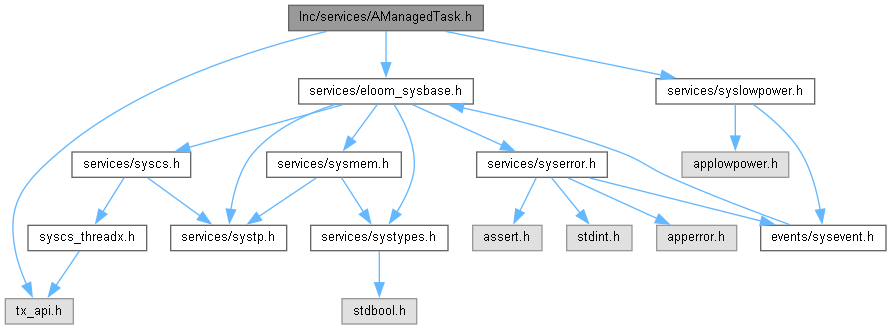

Include dependency graph for AManagedTask.h:

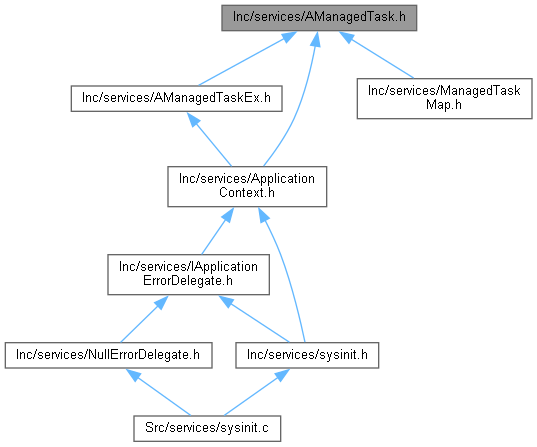

This graph shows which files directly or indirectly include this file:

Macros
#define	MT_MAX_ERROR_COUNT 0x3U

#define	MT_ALLOWED_ERROR_COUNT 0x2U

Typedefs
typedef struct _AManagedTask	AManagedTask

typedef sys_error_code_t()	ExecuteStepFunc_t(AManagedTask *_this)

typedef sys_error_code_t(*	pExecuteStepFunc_t) (AManagedTask *_this)

Functions
static sys_error_code_t	AMTHardwareInit (AManagedTask _this, void pParams)

static sys_error_code_t	AMTOnCreateTask (AManagedTask _this, tx_entry_function_t pvTaskCode, CHAR pcName, VOID pvStackStart, ULONG pnStackSize, UINT pnPriority, UINT pnPreemptThreshold, ULONG pnTimeSlice, ULONG pnAutoStart, ULONG pnParams)

static sys_error_code_t	AMTDoEnterPowerMode (AManagedTask *_this, const EPowerMode eActivePowerMode, const EPowerMode eNewPowerMode)

static sys_error_code_t	AMTHandleError (AManagedTask *_this, SysEvent xError)

static sys_error_code_t	AMTOnEnterTaskControlLoop (AManagedTask *_this)

static sys_error_code_t	AMTInit (AManagedTask *_this)

static EPowerMode	AMTGetSystemPowerMode (void)

static EPowerMode	AMTGetTaskPowerMode (AManagedTask *_this)

static sys_error_code_t	AMTNotifyIsStillRunning (AManagedTask *_this, sys_error_code_t nStepError)

static void	AMTReportErrOnStepExecution (AManagedTask *_this, sys_error_code_t nStepError)

static void	AMTResetAEDCounter (AManagedTask *_this)

static boolean_t	AMTIsPowerModeSwitchPending (AManagedTask *_this)

static sys_error_code_t	AMTSetPMStateRemapFunc (AManagedTask _this, const EPowerMode pPMState2PMStateMap)

VOID	AMTRun (ULONG pParams)

Detailed Description

This file declare the Managed task Interface.

Author: STMicroelectronics - ST-Korea - MCD Team

Version: 3.0.0

Date: Jan 13, 2017

TODO - STF - what is a managed task?

Attention

This software is licensed under terms that can be found in the LICENSE file in the root directory of this software component. If no LICENSE file comes with this software, it is provided AS-IS.

Macro Definition Documentation

◆ MT_ALLOWED_ERROR_COUNT

#define MT_ALLOWED_ERROR_COUNT 0x2U

Specifies the maximum number of error a task can report before resetting the nIsTaskStillRunning flag. If the AEM (::AppErrorManager) is used it will in turn trigger a system reset due to the WWDG.

◆ MT_MAX_ERROR_COUNT

#define MT_MAX_ERROR_COUNT 0x3U

Specifies the maximum number of errors that can be tracked by a managed task.

Typedef Documentation

◆ AManagedTask

typedef struct _AManagedTask AManagedTask

Create type name for _AManagedTask.

◆ ExecuteStepFunc_t

typedef sys_error_code_t() ExecuteStepFunc_t(AManagedTask *_this)

Create a type name for the step execution function.

◆ pExecuteStepFunc_t

typedef sys_error_code_t(* pExecuteStepFunc_t) (AManagedTask *_this)

Create a type name for a pointer to a step execution function.

Function Documentation

◆ AMTDoEnterPowerMode()

static sys_error_code_t AMTDoEnterPowerMode	(	AManagedTask *	_this,
		const EPowerMode	eActivePowerMode,
		const EPowerMode	eNewPowerMode
	)

inlinestatic

Task specific function called by the framework when the system is entering a specific power mode, in order to implement the transaction in the power mode state machine. This function is executed in the INIT task execution flow. A managed task should modify its internal state to be ready to execute steps in the new power mode. The implementation of the managed task control loop, provided with the framework template, suspend the task after this function is called. The INIT task is in charge to resume the task when all the tasks are ready and the new power mode become actual.

Parameters

_this	[IN] specifies a task object pointer.
eActivePowerMode	[IN] specifies the current power mode of the system.
eNewPowerMode	[IN] specifies the new power mode that is to be activated by the system.

Returns: SYS_NO_ERROR_CODE if success, a task specific error code otherwise.

◆ AMTGetSystemPowerMode()

static EPowerMode AMTGetSystemPowerMode ( void )

inlinestatic

Utility function to retrieve the current power mode of the system.

Returns: the current power mode of the system

◆ AMTGetTaskPowerMode()

static EPowerMode AMTGetTaskPowerMode ( AManagedTask * _this )

inlinestatic

Utility function to retrieve the current power mode of the managed task.

Parameters

_this [IN] specifies a task object pointer.

Returns: the current power mode of the system remapped according to the task (PMState, PMState) PM map.

◆ AMTHandleError()

static sys_error_code_t AMTHandleError	(	AManagedTask *	_this,
		SysEvent	xError
	)

inlinestatic

Called by the framework to handle a system wide error. This function is executed in the INIT task execution flow.

Parameters

_this	[IN] specifies a task object pointer.
xError	[IN] specifies a system error

Returns: SYS_NO_ERROR_CODE if success, a task specific error code otherwise.

◆ AMTHardwareInit()

static sys_error_code_t AMTHardwareInit	(	AManagedTask *	_this,
		void *	pParams
	)

inlinestatic

Task specific function called by the framework to initialize task related hardware resources. This function is called by the INIT task.

Parameters

_this	[IN] specifies a task object pointer.
pParams	[IN] specifies a pointer to task specific hardware initialization parameters.

Returns

SYS_NO_ERROR_CODE if success, one of the following error codes otherwise:

SYS_OUT_OF_MEMORY_ERROR_CODE if is not possible to instantiate the driver object.
Other task specific error code

◆ AMTInit()

static sys_error_code_t AMTInit ( AManagedTask * _this )

inlinestatic

Initialize a managed task structure. The application is responsible to allocate a managed task in memory. This method must be called after the allocation.

Parameters

_this [IN] specifies a task object pointer.

Returns: SYS_NO_ERROR_CODE

◆ AMTIsPowerModeSwitchPending()

static boolean_t AMTIsPowerModeSwitchPending ( AManagedTask * _this )

inlinestatic

Check if the INIT task has requested a power mode switch.

Parameters

_this [IN] specifies a task object pointer.

Returns: TRUE if there is power mode switch pending request, FALSE otherwise.

◆ AMTNotifyIsStillRunning()

static sys_error_code_t AMTNotifyIsStillRunning	(	AManagedTask *	_this,
		sys_error_code_t	nStepError
	)

inlinestatic

Notify the system that the task is still running. If an application error manage delegate is installed (_IApplicationErrorDelegate), then a managed task must notify the system that it is working fine in order to prevent a system reset.

Parameters

_this	[IN] specifies a task object pointer.
nStepError	[IN] specifies an error code. Usually it is the error code reported during the task step execution.

Returns: SYS_NO_ERROR_CODE if success, a task specific error code otherwise.

◆ AMTOnCreateTask()

static sys_error_code_t AMTOnCreateTask	(	AManagedTask *	_this,
		tx_entry_function_t *	pvTaskCode,
		CHAR **	pcName,
		VOID **	pvStackStart,
		ULONG *	pnStackSize,
		UINT *	pnPriority,
		UINT *	pnPreemptThreshold,
		ULONG *	pnTimeSlice,
		ULONG *	pnAutoStart,
		ULONG *	pnParams
	)

inlinestatic

Task specific function called by the framework before the task is created. An application should use this function in order to perform task specific software initialization and pass task specific parameters to the INIT task.

Parameters

_this	[IN] specifies a task object pointer.
pvTaskCode	[OUT] used by the application to specify the task main function.
pcName	[OUT] used by the application to specify a descriptive name for the task.
pvStackStart	[OUT] used by the application to specify the start address of the stack. If it is NULL, the the stack is allocated in the system main memory pool.
pnStackSize	[OUT] used by the application to specify the task stack size.
pnPriority	[OUT] used by the application to specify the task priority. Legal values range from 0 through (TX_MAX_PRIORITIES-1), where a value of 0 represents the highest priority.
pnPreemptThreshold	[OUT] used by the application to specify the task preemptive threshold. Highest priority level (0 through (TX_MAX_PRIORITIES-1)) of disabled preemption. Only priorities higher than this level are allowed to preempt this thread. This value must be less than or equal to the specified priority. A value equal to the thread priority disables preemption-threshold.
pnTimeSlice	[OUT] Number of timer-ticks this thread is allowed to run before other ready threads of the same priority are given a chance to run. Note that using preemption-threshold disables time-slicing. Legal time-slice values range from 1 to 0xFFFFFFFF (inclusive). A value of TX_NO_TIME_SLICE (a value of 0) disables time-slicing of this thread.
pnAutoStart	[OUT] Specifies whether the thread starts immediately or is placed in a suspended state. Legal options are TX_AUTO_START (0x01) and TX_DONT_START (0x00). If TX_DONT_START is specified, the application must later call tx_thread_resume in order for the thread to run.
npParams	[OUT] A 32-bit value that is passed to the thread's entry function when it first executes. The use for this input is determined exclusively by the application.

Returns: SYS_NO_ERROR_CODE if success, a task specific error code otherwise. If the function fails the task creation process is stopped.

◆ AMTOnEnterTaskControlLoop()

static sys_error_code_t AMTOnEnterTaskControlLoop ( AManagedTask * _this )

inlinestatic

Called by the framework before the task enters the main control loop. At this moment the system is up and running, a managed task can do some delayed initialization, if needed. This function is executed in the INIT task execution flow.

Parameters

_this [IN] specifies a task object.

Returns: SYS_NO_ERROR_CODE if success, a task specific error code otherwise.

◆ AMTReportErrOnStepExecution()

static void AMTReportErrOnStepExecution	(	AManagedTask *	_this,
		sys_error_code_t	nStepError
	)

inlinestatic

A managed task can handle an error during the step execution by itself. Another option is to let the error navigate up to the main control loop of the task where it will be reported to the system using the AMTNotifyIsStillRunning() function. But if an error occurs and the managed task want to ignore the error and proceed with the step execution, it should notify the system using this function before the error is overwritten. For example:

xRes = HCPExeuteCommand(&_this->m_xProtocol, xReport.outputReport11.nCommandID, NULL, _this->m_pxDriver);
if (SYS_IS_ERROR_CODE(xRes)) {
  AMTReportErrOnStepExecution(_this, xRes);
}
// continue with the step execution.

In this why the error is logged and the AED count the error when it check if the task is still running properly.

Parameters

_this	[IN] specifies a task object pointer.
nStepError	[IN] specifies an error code.

◆ AMTResetAEDCounter()

static void AMTResetAEDCounter ( AManagedTask * _this )

inlinestatic

This function is a convenient method to call the call the system function SysResetAEDCounter() from a task code.

Parameters

_this [IN] specifies a task object pointer.

Here is the call graph for this function:

◆ AMTRun()

VOID AMTRun ( ULONG pParams )

This is the default control loop of a managed task.

Parameters

pParams [IN] specify a pointer to the task object: AManagedTask pTask = (AManagedTask)pParams;

◆ AMTSetPMStateRemapFunc()

static sys_error_code_t AMTSetPMStateRemapFunc	(	AManagedTask *	_this,
		const EPowerMode *	pPMState2PMStateMap
	)

inlinestatic

Set the PM state remapping function for a managed task object. It is used by the application to re-map the behavior of an AManagedTask during a power mode switch. Image a developer that want to use an existing managed task (MyManagedTask1) in a new application. Probably the new application has a different PM (PM_SM_2) state machine than the one used to design and implement the managed task MyManagedTask1 (PM_SM_1). In this scenario it is possible to reuse the managed task as it is if exist a subjective function f(x) -> (PM_SM_2, PM_SM_1), that map all states of PM_SM_1 in one or more states of PM_SM_2. It is possible to set this member to NULL, and, in this case no remapping is done.

Parameters

_this	[IN] specifies a task object pointer.
pPMState2PMStateMap	specifies a map (PMState, PMState). The map must be implemented with an array. The number of elements of the array must be equal to the number of states of the PM state machine.

Returns: SYS_NO_ERROR_CODE if success, an error code otherwise.
